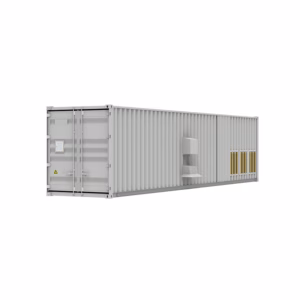

Integrated Energy Storage System 1000KW/2150KWH
Features
Contact Us For Bulk Order Price
Description
The commercial energy storage systems system integrates energy storage converter, storage battery, isolation transformer, cooling, fire protection, power distribution, dynamic loop monitoring andenergy management, friendly grid adaptability, accepting grid scheduling, active and reactive power compensation supporting peak shaving and valley filling, demand-side response, andassisting in new energy grid-connected applications, etc. The IP54 protection level energy storage products adapts to the harsh outdoor environment, which is perfectly suited to the needs of industrial and commerdial energy storage.
In common application scenarios, the operation strategies of commercial containerized energy storage systems are as follows:
Peak shaving and valley filling
During off-peak hours of time-of-use electricity pricing: The energy storage unit automatically charges and goes into standby mode after being fully charged.During peak hours of time-of-use electricity pricing: The energy storage unit automatically discharges, realizing arbitrage based on the price difference between peak and off-peak hours, thereby enhancing the economic benefits of the photovoltaic (PV) + energy storage + charging system
PV and energy storage integration
Real-time monitoring of local load power is conducted, with P\V power generation prioritized for self-consumption, and excess power stored.If the P\power generation is insufficient to meet local load demand, battery storage is preferentially utilizzed.When the off-grid battery discharges to the set lower limit of the State of Charge (SOC), manually trips the grid power switch and closes the diesel generator switch to star the diesel generator and continues supplying power to the load.When grid power is restored, manually trips the diesel generator switch and closes the grid power switch, allowing the system to operate in grid-connected mode.
Tech Specs
Mode | ZECO-ESS2150(1075W/2150kWh) |
|---|---|
DC Side Parameters | |
Operating Voltage Range | 680~1000V |
Full load voltage range | 680~1000V |
Maximum DC current | 200A*8 |
Adaptive Battery | Lithium Battery/lead acid/photovoltaic modules |
Charging Mode | As per BMS command/Tri-Stage/MPPT |
Operating mode | Constant current, constant power, MPPT, AC voltage source, DC voltage source |
AC-side parameters (On-grid) | |
Rated/Maximum AC Power | 1000/1100kW |
Rated AC current | 180A*8 |
Rated AC voltage | 400V，3W+N+PE |
THDI | ＜3%（Rated Power） |
Power factor | -1 ahead ~ +1 behind |
AC-side parameters (Off-grid) | |
Rated AC voltage | 400V |
Rated AC frequency | 50/60Hz |
THDU | ＜3%（Linear Load） |
Overload capacity | 110%, normal operation; 120%, 1 minute |
General parameters | |
Degree of protection | IP21（Indoor) |
Protective Class | / |
Isolation mode | Transformer isolation |
Shutdown self-discharge | ＜0.1% rated power（Without transformer) |
Display | LCD |
Relative humidity | 0 ~ 95% (no condensation) |
Noise | ＜78dB |
Ambient temperature | -35℃ to +60℃(derating above 45℃) |
Cooling mode | Intelligent air-cooled |
Altitude | 3000m (> 3000m reduction) |
Communication interface | Rs485 / CAN |
Dimensions (W*D*H) | 1200*1000*2100mm(PCS cabinet) |
Weight (approx.) | 3400kg |
Product Features
Industrial/commercial energy storage for Diverse Functions
Industrial/commercial energy storage supports peak shaving and valley filling, dermand-side response backup power supply, and other major functions; it enables remote updates of operational strategies and firmware upgrades, resulting in lower operation and maintenance costs;
Industrial/commercial energy storage for High Integration
Industrial/commercial energy storage system is productized, integrating energy storage batteries PCS(Power Conversion System), power distribution, temperature control, fire protection, water immersion door sensors, and monitoring cormmunication providing comprehensive control over the system's operationoI status and risks; one-stop delivery shortens the on-site installation and commissioning period of the project;
Industrial/commercial energy storage for Flexible and Convenient
Modular PCS allows for linear expansion of battery units and bidirectional energy storage inverter units; Industrial/commercial energy storage possesses independent charging and discharging control capabilities for multiple battery pack-enhancing battery utilization and safety;
Industrial/commercial energy storage for Safe and Intelligent
A fault escalation handling mechanism responds to preset fault scenarios; customized BMS (Battery Management Systerm) provides comprehensive measurement and protection functions; Industrial/commercial energy storage supportis cloud-based dispatching and operational report analysis.
Product Applications
Energy Storage System for Electric Vehicle Charging Infrastructure
Super charging station buffer: to solve the impact of high power charging (e.g. 350KW) on the power grid and reduce the cost of capacity expansion.
V2G application: can support vehicle-network interaction in the future (requires charging pile protocol matching).
Energy Storage System for Commercial Complexes and Public Facilities
Capacity cost management: shopping malls, hospitals, data centers, etc. Smooth the demand through energy storage to reduce the transformer capacity charge (demand charge).
Optical storage integration: Combined with rooftop photovoltaic, it realizes green power self-consumption and reduces carbon emissions.
Energy Storage System for Industry and Manufacturing
Peak and valley arbitrage: high energy-consuming factories (e.g. metallurgy, chemical industry) take advantage of the difference between the peak and valley electricity prices of the power grid, charging in the valley time and discharging in the peak time to reduce the cost of electricity.
Emergency power supply: replace diesel generators to provide uninterruptible power supply (UPS) for production lines to avoid production losses caused by voltage dips.
Energy Storage System for new energy generation side (PV/wind farm)
Smoothing power: Solve the volatility of PV/wind power to meet the “15-minute smoothing” requirement of grid connection.
Abandoned power storage: store abandoned wind and photovoltaic power to improve the utilization rate of renewable energy.
Energy Storage System for Microgrid and Off-grid Projects
Island/Mining Power Supply: Replace diesel engine, form off-grid micro-grid with PV/wind power, reduce fuel cost.
Military base: provide stable and hidden energy supply for remote posts.
Energy Storage System for grid-side auxiliary services
Frequency Regulation (FR): Responding to the demand for grid frequency regulation, with a revenue model of service fees (e.g. China's “two rules” compensation).
Black start: as a quick recovery power source after grid collapse.
Looking for wholesale suppliers of 1000KW/2150KWH integrated energy storage system?
ZECONEX helps you to store energy efficiently and win the future together!
In the field of energy storage systems, ZECONEX has won the trust of global customers with its excellent technical strength, rich industry experience and professional service team. We specialize in providing efficient and reliable integrated energy storage solutions to help you easily cope with all kinds of energy storage needs, from commercial energy storage to industrial energy storage, from household energy storage to micro-grid energy storage, ZECONEX can be your most solid backing.
ZECONEX's 1000KW/2150KWH integrated energy storage system adopts advanced battery technology and intelligent control system to ensure efficient and stable energy storage performance. The system features high energy density, long cycle life and low self-discharge rate, which can maximize the use of energy storage space and improve energy storage efficiency. Meanwhile, the system also supports fast charging and discharging to meet your diverse energy storage needs.
