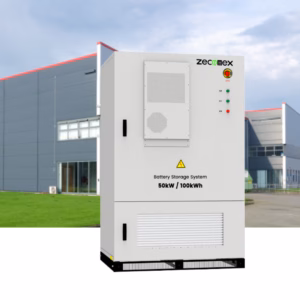

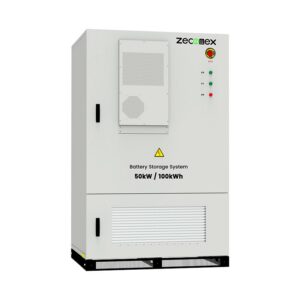

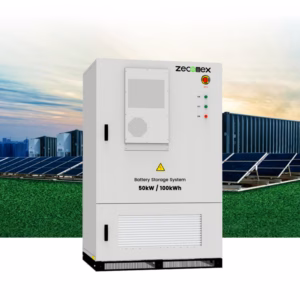

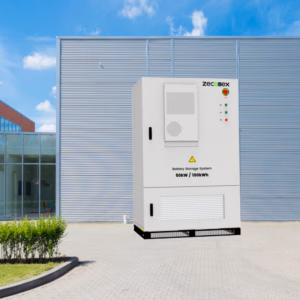

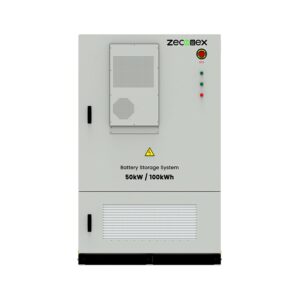

Outdoor Cabinet Energy Storage System 50KW 100KWH
Features
Contact Us For Bulk Order Price
Description
This outdoor energy storage cabinet integrates energy storage batteries, modular PCS, energy management monitoring system, power distribution system, environmental control system, and fire control system. Energy storage systems adopt modular PCS for easy maintenance and expansion. The outdoor cabinet adopts front maintenance to reduce the occupied area and maintenance channel. Energy storage device has the characteristics of safe and reliable operation, fast deployment, low cost, high energy efficiency, and intelligent management.
The operating strategy of the energy storage system in common application scenarios is as follows:
Peak shaving and valley filling
When the time-of-use tariff is in its valley segment, the energy storage cabinet automatically charges, and then remains idle after full charging. When the time-of-use tariff is at its peak segment, the energy storage cabinet automatically discharges, realizing the arbitrage
of price difference and improving the economic efficiency of the photovoltaic energy storage-charging system.
Photovoltaic-energy storage integration
Real-time acquisition of local load power, photovoltaic power generation priority is self generation and self-use, and surplus electricity storage. When the power generated by photovoltaic power generation is insufficient to provide local load, the battery storage is prioritized.
Tech Specs
Model Number | ZECO-ESS100(50kW/100kWh) |
|---|---|
Battery rated capacity | 100kWh |
Battery rated voltage | 844.8V |
Battery voltage range | 739.2V~950.4V |
Battery type | Lithium Iron Phosphate batery (LFP) |
Battery cell capacity | 120Ah |
Series of Batery | 1P*24S*11S |
Maximum charge and discharge current | 60A |
Photovoltaic rated capacity | 50kW |
Photovoltaic voltage range | 200~550V |
Rated AC power | 50kW |
Rated AC current | 72A |
Rated AC voltage | 400V,3W+N+PE/3W+PE |
Rated AC frequency | 50/60Hz |
THDI | <3% (Rated power) |
Power Factor | -1 leading to+1 lagging |
THDU | <3%(Linear Load) |
Degree of protection | IP54 |
Protective Class | / |
Isolation mode | No-Isolation(A ding isolation transformer is optional) |
Shutdown self-discharge | <100W (Without transformer) |
Display | LCD |
Relative humidity | 0 ~ 95%(no condensation) |
Noise | <78dB |
Ambient temperature | -25°C to +60°C(with derating at temperatures above 45°C) |
Cooling mode | Intelligent air-cooled |
Altitude | 3000m (> 3000m reduction) |
Communication interface | CAN/Ethernet / 485 |
Size (W*D*H) | 1300*1030*2100mm |
Weight (approx.) | 2150kg |
Product Features
Energy Storage System System Integration
The system has been commercialized, integrating energy storarge batteries, energy storage converters, photovoltaic converters, energy management monitoring systems, power distribution systems, environmental control systems, and fire controsystems. It can fully control the operation status and risks of the system.
Energy Storage System Intelligent Dispatch
Real-time acquisition of local load power, photovoltaic power generation priority is self generation and self-use, and surplus electricity storage. When the power generated by photovoltaic power generation is insufficient to provide local load, the battery storage is prioritized
Energy Storage System Environmental Protection
The protection level is IP54, which can perfectly cope with various types of weather in the outdoor environment.
Energy Storage System Efficient Cooling
It adopts door-mounted embedded integrated air condditioning, which does not occupy cabinet space, improves the available space of outdoorcabinets, has better structural integrity at the top, and has good waterproof perlformance.
Energy Storage System Convenient Management
The local control screen can achieve diversified functions such as system operation monitoring, energy management strategy development, equipment remote upgrading. etc.
Zeconex produces wholesale 50KW/100KWH outdoor cabinet energy storage system and invites new and old customers to place bulk orders!
In the field of outdoor energy storage systems, Zeconex provides efficient and reliable energy storage solutions for global customers with excellent technical strength, rich industry experience and professional service teams. Our 50KW/100KWH outdoor cabinet energy storage system, with its excellent performance and thoughtful design, is the ideal choice for outdoor energy storage applications.
Zeconex provides one-stop service, from pre-sales consultation, product customization to after-sales service. We have a professional technical team to provide you with technical support and solutions; an efficient logistics system to ensure timely delivery of products; perfect after-sales service, so that you do not have to worry. Whether it is product selection, installation and commissioning or post maintenance, we can provide you with a full range of support.
