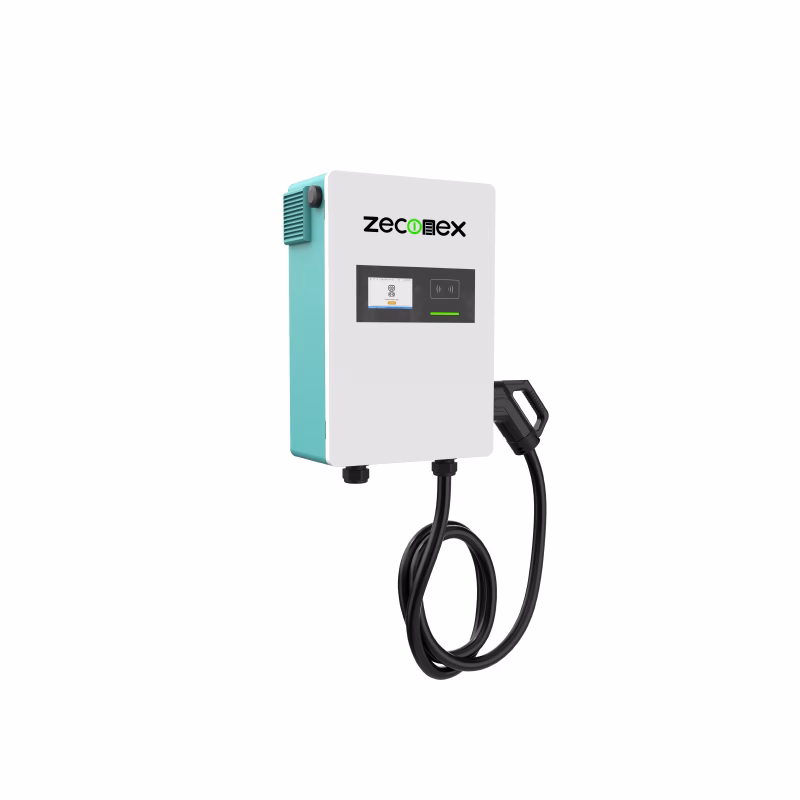

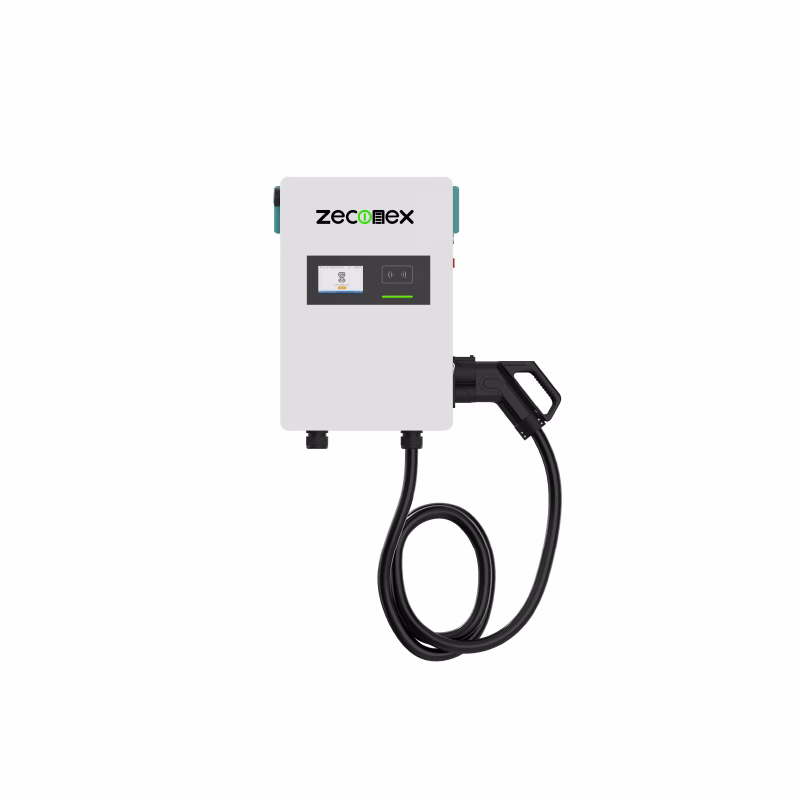

Commercial MINI DC Charger (Eco-version) 30KW-40KW
Features:
Contact Us For Bulk Order Price
Description
Zeconex EV Charger Manufacturer - Commercial MINI DC Charger (Eco-version) 30KW-40KW
Zeconex, a leading EV charger manufacturer, introduces the Commercial MINI DC Charger (Eco-version) with power ratings of 30KW and 40KW. This innovative charger is designed to meet the growing demands of electric vehicle (EV) owners and fleets, offering a reliable and efficient charging solution.
Equipped with a 4.3-inch touch screen LCD and ring LED, this EV charger provides an intuitive user experience. The display is user-friendly, making it easy for EV drivers to navigate and initiate the charging process.

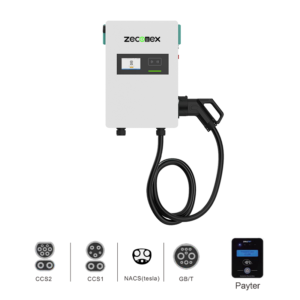

The charger supports CCS2, CCS1, NACS, and GB/T standards, ensuring fast and efficient charging for a variety of electric vehicles. The input/output power of up to 400VAC±10% 50/60Hz ensures compatibility with different power sources.
This EV is versatile and can be connected to global EV charge management platforms, making it suitable for both indoor and outdoor installations. It is easy to control via Bluetooth using the mobile phone APP and RFID functions.
The EV charger includes load balancing functionality and various safety features such as over/under voltage protection, overload protection, current leakage protection, and lightning surge protection.
Designed to operate in a wide temperature range of -30°C to +50°C and in humid conditions up to 95%, this charger is built to withstand diverse environmental conditions.
Tech Specs
Model | ZECO30K-D1 | ZECO40K-D2 |
|---|---|---|
Technical Features | ||
Max Power | Up to 30KW | Up to 40KW |
Input/Output power | 400VAC±10%-50/60Hz-3phase(CCS2 and GB/T) | 400VAC±10%-50/60Hz-3phase(CCS2 and GB/T) |
Power factor | 0.98 | |
Efficiency | >95% | |
Measuring accuracy | Level 0.5 | |
Output voltage range | CCS2/CCS1/ NACS/GB/T: 150~ 1000VDC | |
Output current range | 0-100A | 0-133A |
Communication | ISO15118 / DIN70121(between charger & vehicle)/Ethernet/4G/OCPP 1 .6J(TLS1 .2 ) | |
User Interface | 4.3 inch Touch Screen / RFID card and APP | |
Versatility | EN/ IEC 61851-1: 2019 , EN/ IEC 61851-23: 2014 , UL 2202 , Ul2594 | |
Energy Meter | CE certified(optional) | |
RCD | Type A(optional) | |
Security design | Over/ under voltage protection , overload protection , current leakage protection , grounding protection , lightening surge protection | |
DC Plugs | Cable 5M | |
Load balancing | Load balancing meter and CT(optional) | |
Physical Properties | ||
Application place | Indoor / outdoor | |
IP Level | IP55 | |
Installation method | Wall mount , pedestal mount (optional) | |
Sound noise | <75DB in all directions | |
Operating temperature | -30°C to +50°C | |
Humidity | Max .95%(non-regulating) | |
Product Dimensions | 410*208*620(L*W*H)mm | 410*208*620(L*W*H)mm |
Package Dimension | 930*460*1800( L*W* H )mm | 930*460*1800( L*W* H )mm |
Net Weight | 41Kg | 55Kg |
Gross Weight | 45 .3Kg | 58 .5Kg |
Cloud Platform
Dedicated to enabling the future of e-Mobility by providing the most open, secure and robust charging network anywhere. A charging platform based on the cloud server makes it simple for charger owners to operate and customize chargers to meet their specific requirements. We provide everything you need to offer a complete EV charging solution.
Mobile App
The charging App connects EV drivers with charging stations, so that they can easily fifind a charger and enjoy the charging service. It enables users to do location search, charging monitor and payment settlement. All is done in a mobile phone.

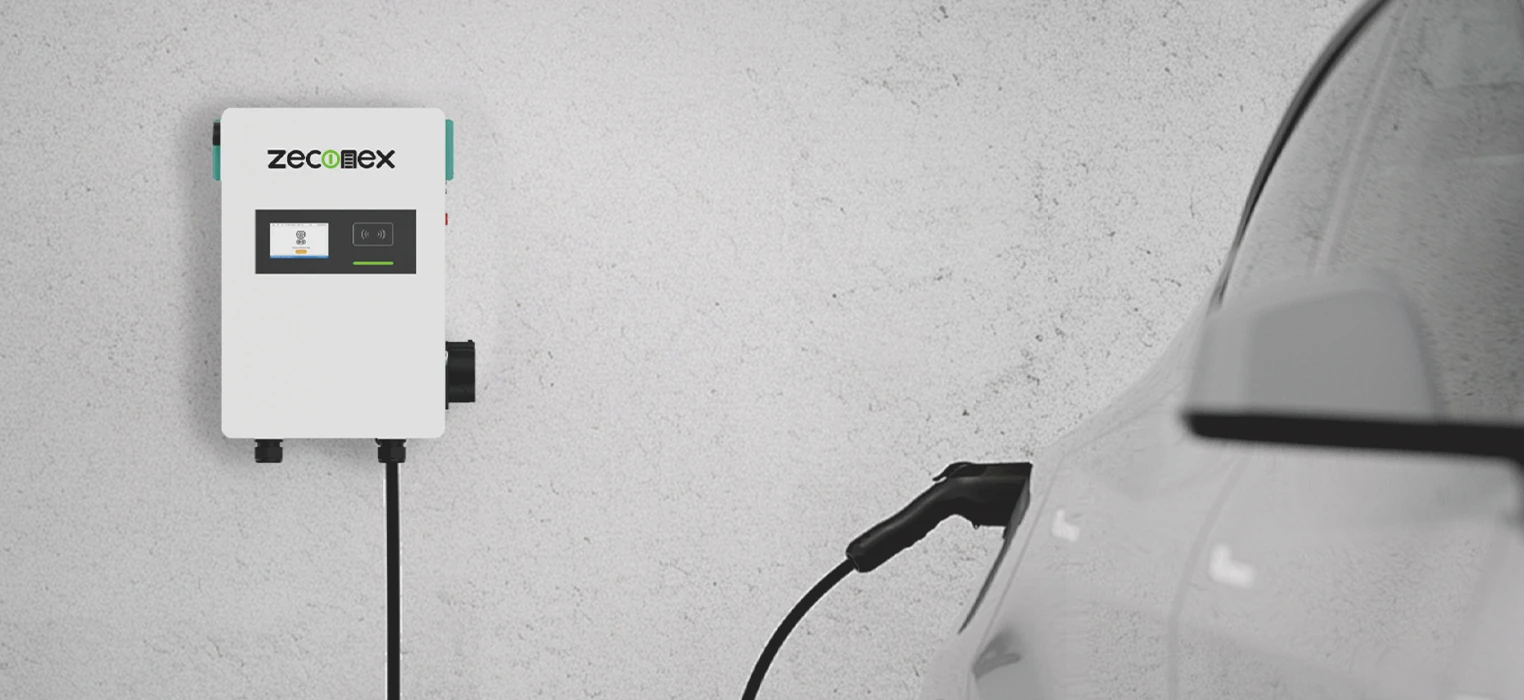

Product Applications
FAQ
What is Zeconex Commercial MINI DC Charger?
The Zeconex Commercial MINI DC Charger is a highly efficient and environmentally friendly DC fast charger for electric vehicles, available in 30KW (ZECO30K-D1) and 40KW (ZECO40K-D2) models, suitable for a wide range of electric vehicles.
What are the Application Areas of the Commercial MINI DC Charger?
The Commercial MINI DC Charger is suitable for indoor and outdoor use in a variety of applications, such as commercial parking lots, public charging stations, and residential areas.
What is the Maximum Power of the Commercial MINI DC Charger?
The maximum power of ZECO30K-D1 Commercial MINI DC Charger is 30KW and the maximum power of ZECO40K-D2 Commercial MINI DC Charger is 40KW.
What is the Input/Output Voltage and Current Range?
The input voltage of the Commercial MINI DC Charger is 400VAC±10%, frequency 50/60Hz, three-phase. The output voltage range is 150-1000VDC. The output current range is 0-100A for ZECO30K-D1 and 0-133A for ZECO40K-D2.
How Efficient is the Commercial MINI DC Charger?
The efficiency of both chargers is higher than 95%, ensuring efficient conversion of energy.
What are the Communication Interfaces of the Commercial MINI DC Charger?
The Commercial EV Charger supports ISO15118, DIN70121 (between the charger and the vehicle), Ethernet, 4G and OCPP 1.6J (TLS1.2) for easy integration into various charging networks and management systems.
How is the Commercial MINI DC Charger User Interface?
Equipped with a 4.3-inch touch screen, it supports RFID card and APP operation, allowing users to interact in a variety of ways.
What are the Installation Methods of Commercial MINI DC Charger?
It supports wall mounting and column mounting (optional).
What is the Protection Level of Commercial MINI DC Charger?
With a protection rating of IP55, the Commercial MINI DC Charger is suitable for use in dusty and humid environments.
What is the Operating Temperature Range of the Commercial MINI DC Charger?
The Commercial MINI DC Charger can be operated in a temperature range of -30°C to +50°C. The temperature range is from -30°C to +50°C.
What are the Dimensions and Weight of the Commercial MINI DC Charger?
The dimensions of the Commercial MINI DC Charger are 410*208*620(L*W*H)mm, and the package size is 930*460*1800( L*W*H)mm. The net weight of ZECO30K-D1 is 41Kg, and the gross weight is 45.3Kg; the net weight of ZECO40K-D2 is 55Kg, and the gross weight is 58.5Kg. The ZECO40K-D2 has a net weight of 55Kg and a gross weight of 58.5Kg.
What are the Safety Protection Features of Zeconex Commercial MINI DC Charger?
The Zeconex Commercial MINI DC Charger provides over-voltage, under-voltage, overload, current leakage, grounding and lightning surge protection to ensure safe use.
Does the Commercial MINI DC Charger Support Load Balancing?
The Commercial MINI DC Charger supports load balancing with an optional load balancer and CT (current transformer).
Does the Commercial MINI DC Charger have a DC Plug?
The Commercial MINI DC Charger is equipped with a cable DC plug with a length of 5 meters.
